Premium
Line

A truly unique range of gas detectors where cutting-edge technology combines with exceptional service, setting new standards for global safety. Personalised detection from the type of gas to the container specifications. The entire Premium range is regulated by the most stringent Atex and performance certifications. SMART S detectors are designed to accommodate maximum system personalisation requirements. Customers may choose between different types of system performance (with LCD or LED display, without display, number of cable sockets, number of relays, Hart modem, copper-free aluminium or stainless steel enclosures). It is also possible to select the type of gas to be detected by choosing the appropriate sensor head.

Linea Premium
Sensitron Srl

Smart
S Detectors

SMART S-SS, SMART S-MS and SMART S-IS single sensor head and single output

Designed to guarantee safe gas detection in the harshest environments, SMART S gas detectors have SIL2 (SIL3) and ATEX certification and comply with the restrictive application requirements of the oil & gas, chemical and petrochemical industries and wherever the concept of Safety Integrity Level is a fundamental necessity. Certified for compliance with the EN 50402 and IEC 61508 (Parts 1 to 7) standards.

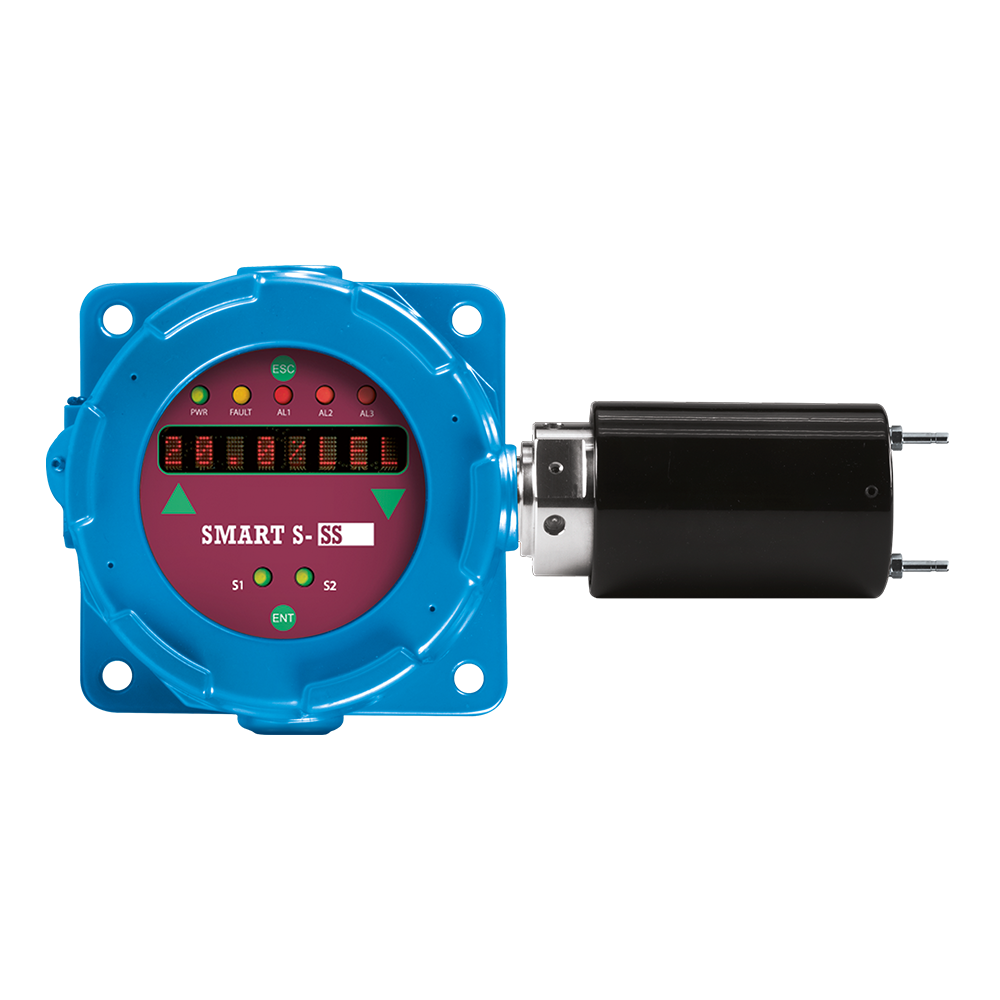

SMART S-SS

  • Electronic with1 output RS+4-20 mA,
  • LCD display or LED
  • Optional 3-relay card
  • Optional Modem Hart
  • Aluminum enclosure or stainless steel
  • SIL2 Hardware &  SIL3 Software Certified
  • ATEX certified for zone 1 as II2G Ex db IIC T5 Gb

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

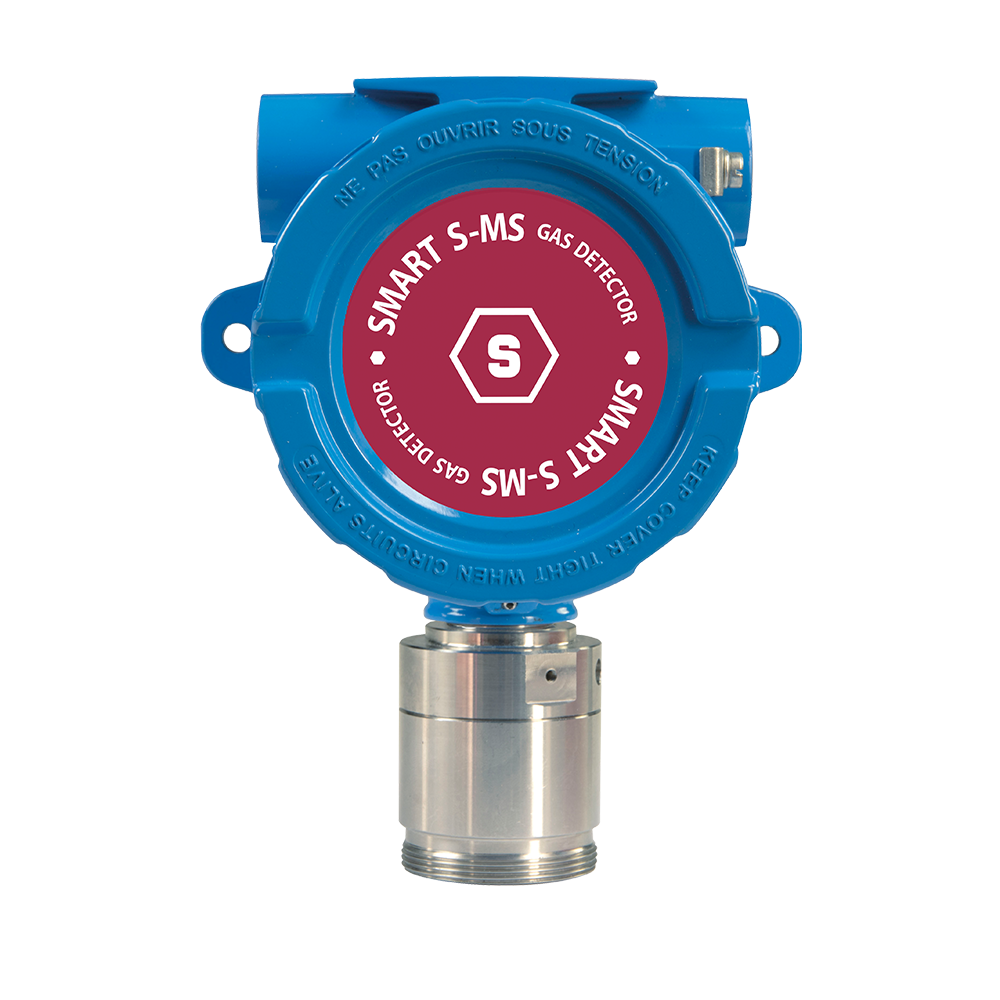

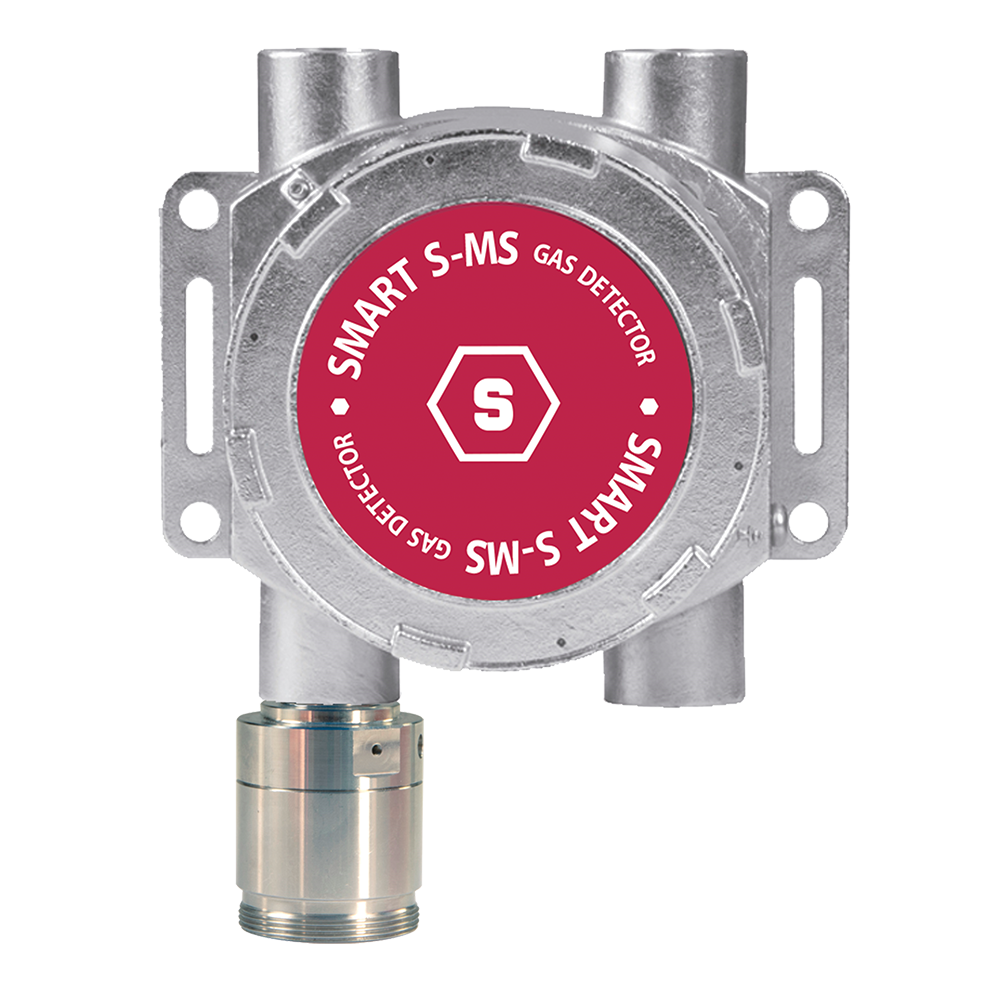

SMART S-MS

  • Electronic with1 output RS+4-20 mA,
  • Blind enclosure
  • Optional 3-relay card
  • Optional Modem Hart
  • Aluminum enclosure or stainless steel
  • SIL2 Hardware &  SIL3 Software Certified
  • ATEX certified for zone 1 as II2G Ex db IIC T5 Gb

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

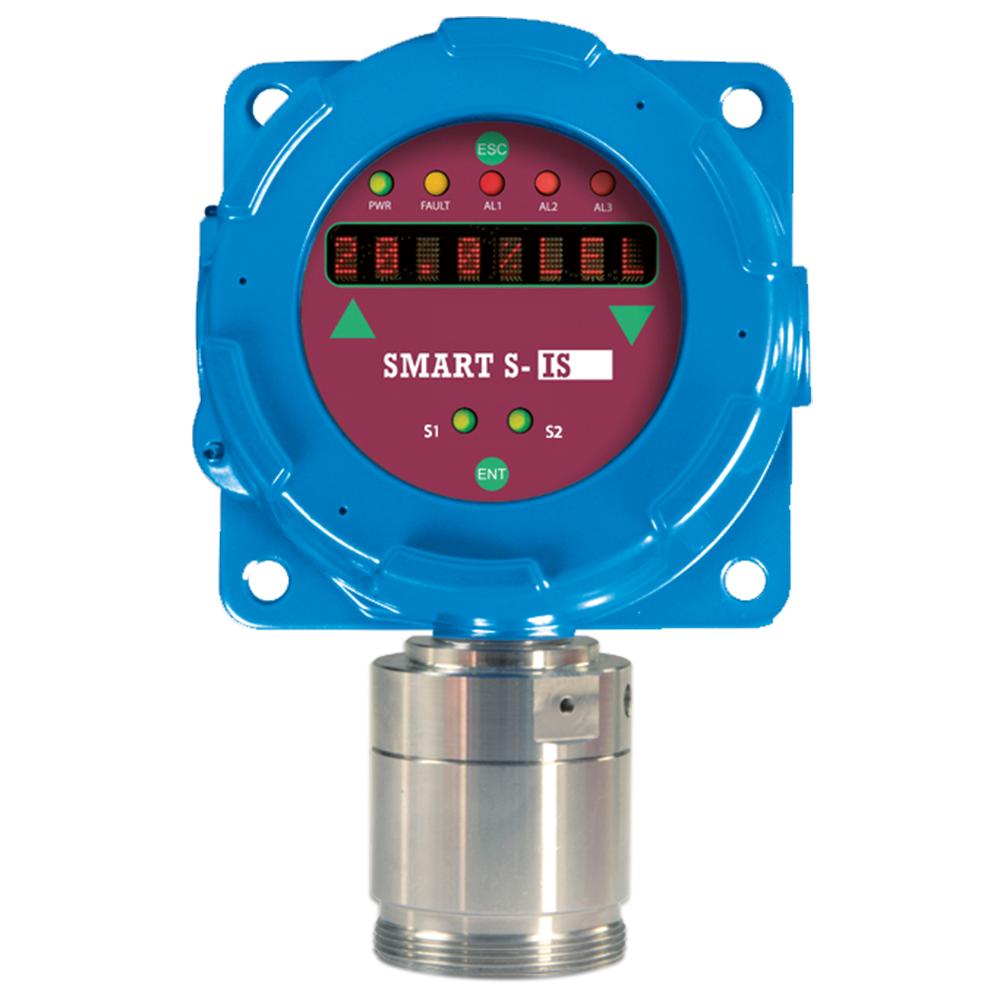

SMART S-IS

  • Zener barrier and Galvanic separation
  • Electronic with1 output RS+4-20 mA,
  • LCD display or LED
  • Optional 3-relay card
  • Optional Modem Hart
  • Aluminum enclosure or stainless steel
  • SIL2 Hardware &  SIL3 Software Certified
  • ATEX certified for zone 1 as II2G Ex db [ib] IIC T6 Gb
The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

Looking for more information?

Get in touch now! One of our experts will reply as soon as possible.

Sensitron Srl

PREMIUM SAFETY
LINE CONTROL PANELS

To offer a complete gas detection system, fully compliant to SIL2 and SIL3 requirements, Sensitron proposes the Premium line range, consisting of SMART S detectors and GALILEO & Multiscan++ control panels. Thanks to the fully redundancy of the hardware and the broad range of self-testing facilities, GALILEO panels are SIL 3 certified according to EN 50402 and IEC 61508 parts 1 to 7. Available in different models, these panel can monitor from 8 up to 256 detectors. For applications where a less restrictive SIL capability is required, Sensitron proposes MULTISCAN++S2 control panel, certified SIL2. All control panels are ATEX certified according to EN 60079-29-1.

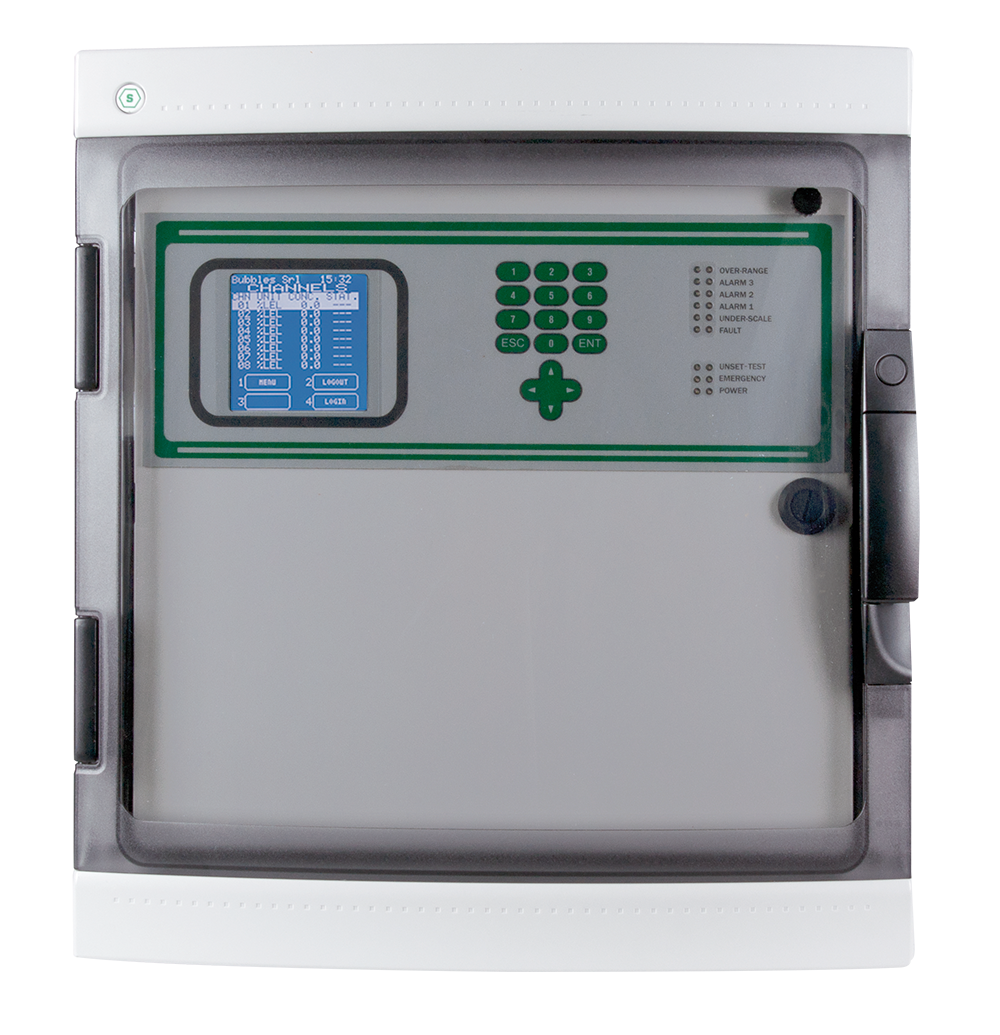

GALILEO 8/32

  • ATEX EN 60079-29-1 and SIL 3 certified (EN 50402)
  • Fully redundant
  • 32 detectors on a daisy-chained closed loop (G32) or 8 x 4-20 mA detectors (G8) 8 relay outputs
The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

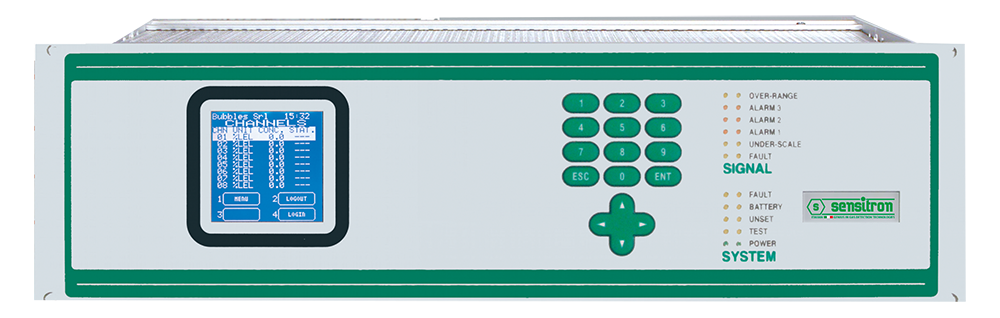

GALILEO SMS

  • ATEX EN 60079-29-1 and SIL 3 certified (EN 50402)
  • Fully redundant
  • 2 digital RS485 (EIA-485) galvanic isolated closed loops
  • Up to 256 inputs (both 4-20 mA or addressable loop daisy-chained)
  • Up to 520 relay outputs
The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

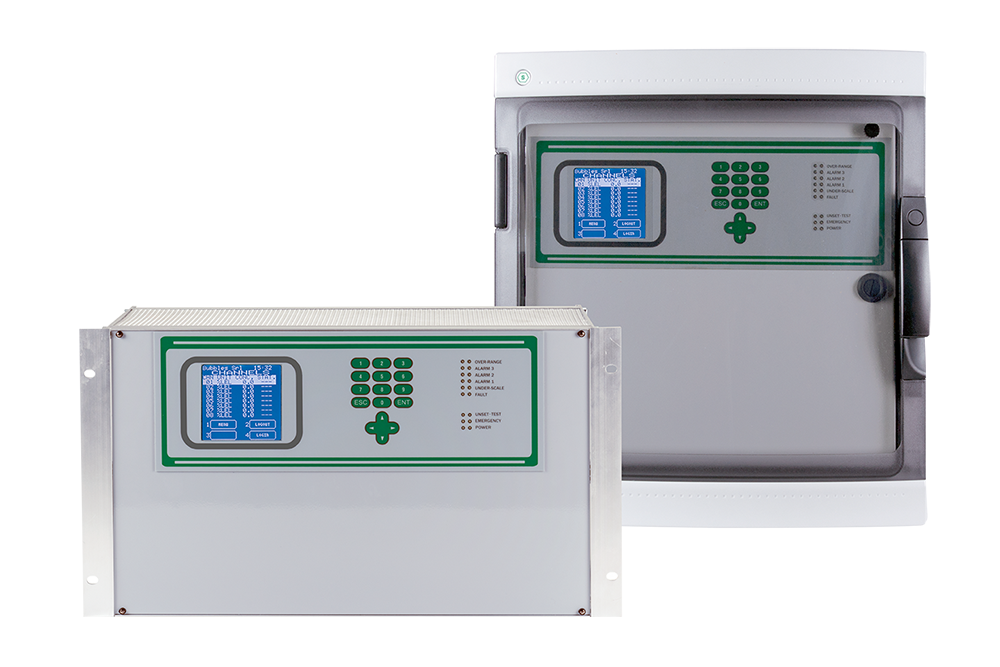

MULTISCAN++S2

  • ATEX EN6079-29-1 and SIL 2 certified (EN 50402)
  • Up to 2 closed RS485 (EIA-485) galvanic isolated loops
  • Up to 256 inputs (both 4-20 mA or addressable loop daisy-chained)
  • Up to 512 O/C outputs on remote modules (relay card optional) and 8 relays on the control unit’s board.
The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

Looking for more information?

Get in touch now! One of our experts will reply as soon as possible.

Sensitron Srl

MED
APPROVED SYSTEM

The gas detection system consists of MULTISCAN++MED gas control panels and SMART S-MSdetectors, both purposely designed and certified to meet with the Marine requirements.
The system has been certified by the Lloyd’s Register in accordance with MED/3.54 Regulation.
The MULTISCAN++MED are advanced multifunction gas detection control panel designed to meet with the increasing requests for highly flexible systems.
They come complete with specific software that makes them suitable to be used in SIL2 plants.
A powerful microprocessor allows a wide range of self-testing facilities to take place to detect and localize possible failures.
The system allows the connection of gas detectors and remote input/output modules via 2 closed loops.
The control panels can manage and monitor up to 64 gas detectors. These can either be addressable detectors, daisy chained on the available loops, or analog type with 4-20mA transmission, connected via remote 8 input cards STG/IN8-S2.
The system architecture includes 8 preset relays onboard the units and the possibility to have further 128 open collector outputs via remote STG/OUT16-S2 output cards. To these cards it is possible to connect 8-relays boards, should relay outputs be required.

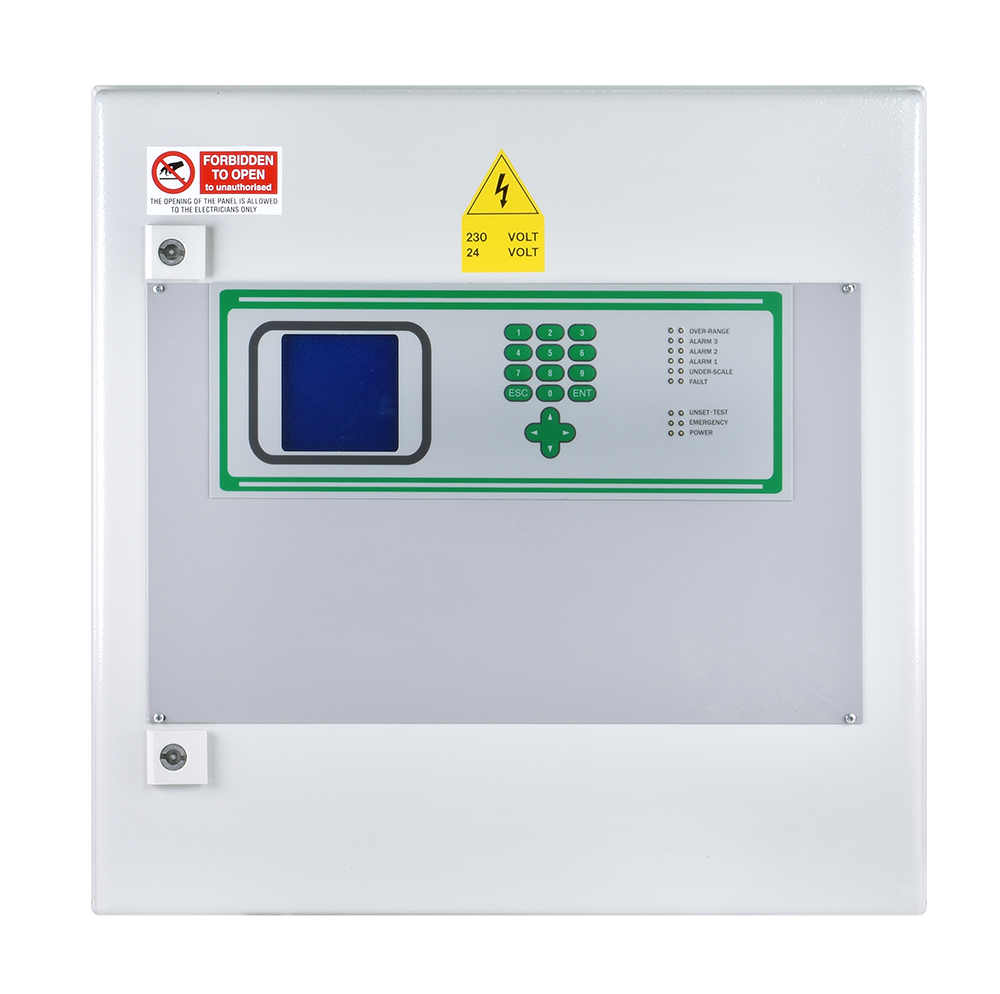

MULTISCAN++MED

 All devices connected to the loops feature galvanic isolation to protect the system from any electric noises coming from the field. A broad range of self-testing facilities are implemented to detect and localize possible faults.

The backlit graphic LCD display provides a precise indication of the gas concentration being measured. A RS232C serial port allows the PC connection to the CPU board for the panel configuration and supervision.

Report from the event memory or real-time printouts can be obtained by connecting a printer to the parallel printer port.

The panels are supplied in a robust metal cabinet.

  • Marine, ATEX and SIL 2 certified (EN 50402)
  • Up to 2 closed RS485 (EIA-485) galvanic isolated loops
  • Up to 64 inputs (standard configuration) and up to 256 inputs on request
  • Up to 128 O/C outputs (standard configuration) and up to 256 outputs on request.
The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

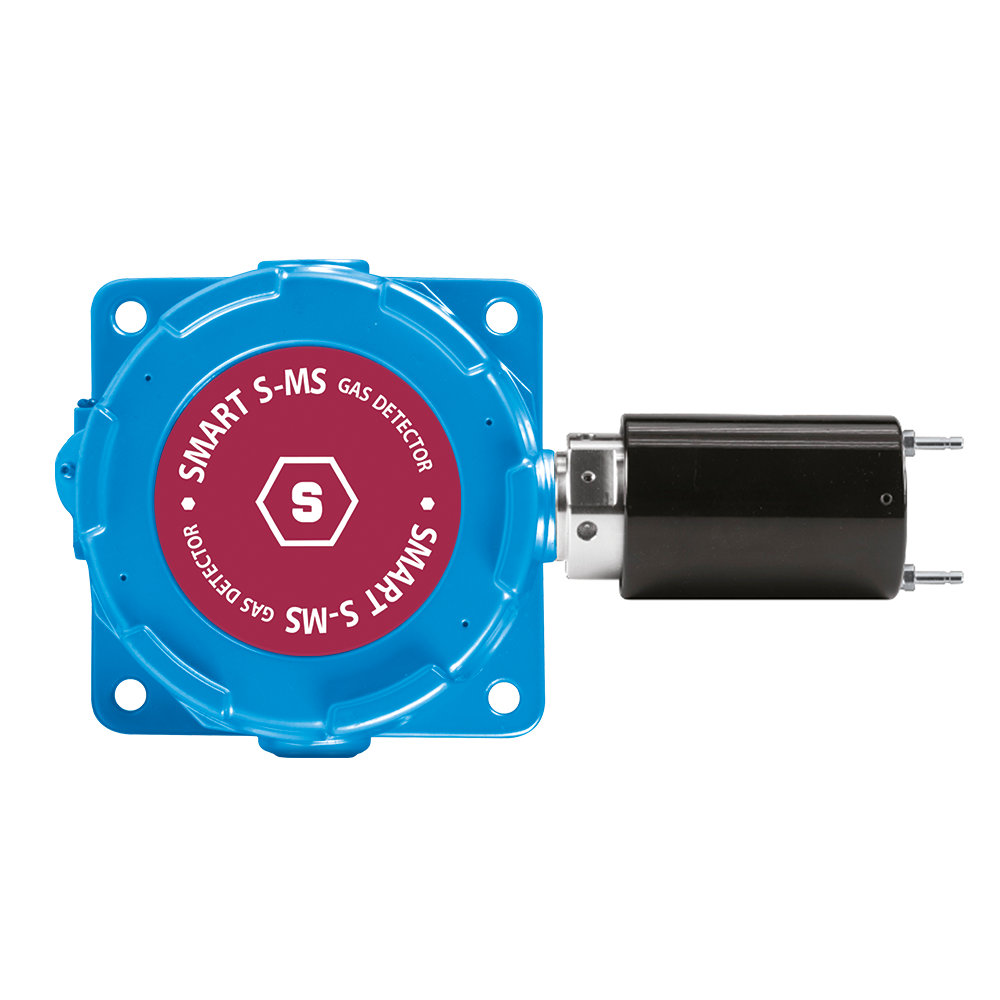

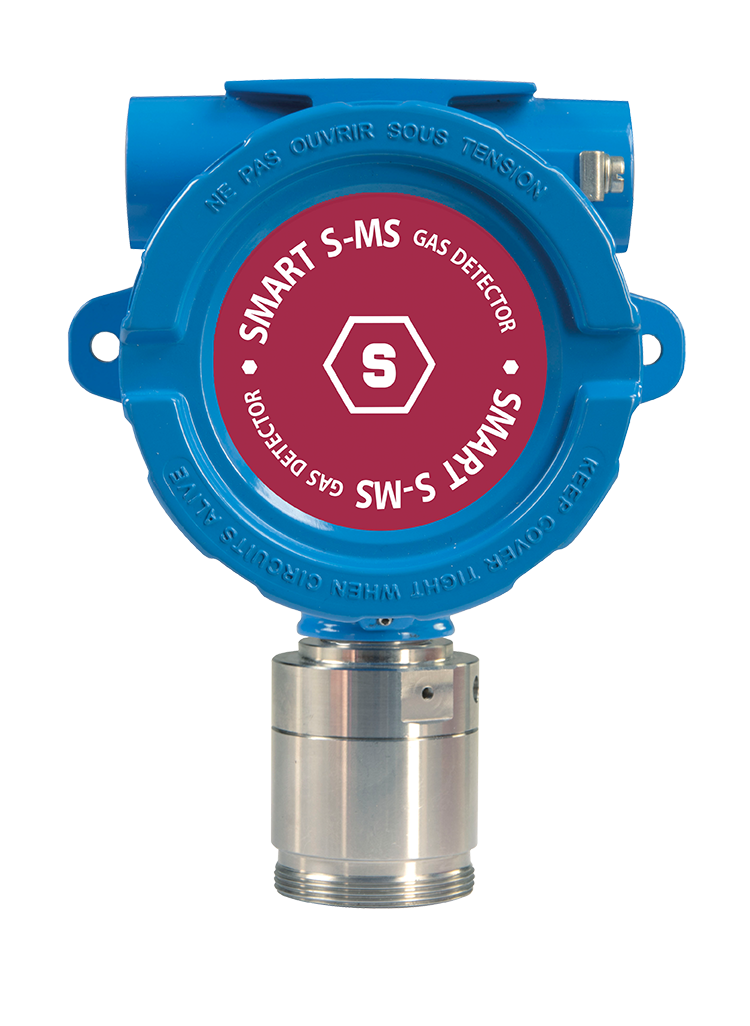

SMART S-MS MED

Designed to meet with the harshest conditions of Marine environments, SMART S-MS MED line allows to monitor flammable gas contents both by employing catalytic or infrared technologies.

These detectors have been certified to SIL 2 Hardware SIL 3 Software capability and are ATEX certified for zone 1 as II2G Ex db IIC T5 Gb.

SMART S-MS line has also been Marine certified by Lloyd's Register.

  • Electronic with1 output RS+4-20 mA
  • 3-relay card Output
  • SIL2 Hardware &  SIL3 Software Certified
  • Certified by Lloyd's Register
