DESIGNED FOR
NON-CLASSIFIED AREAS

SMART
3

GAS DETECTION SYSTEMS
SMART 3

SMART 3
SERIES
FOR NON-CLASSIFIED AREAS

SMART 3 series gas detectors are designed for use in non-classified areas.

CHARACTERISTICS

MAIN

FEATURES

OF THE LINE











SMART 3
FOR NON-CLASSIFIED AREAS
MAINTENANCE
Simple maintenance in the field
PRECISION
professional detection of
gases with high GWP
RESISTENT
Designed with the same industrial safety standards
SAFE
Complies with F-Gas regulation
APPLICATIONS

PHARMACEUTICAL

>>>

Gas detection in the pharmaceutical sector is essential in all processes:in laboratories, in production in chemical manufacturing processes up to the storage of materials and products.

MOST DETECTED GASES:OXYGEN (O2), AMMONIA (NH3), LPG/LPG, HYDROGEN (H2), METHANE (CH4), ACETONE (C3H6O), ETHYL ACETATE (C4H8O2), HEXANE (C6H14), STYRENE (C8H8), PENTANE (C5H12), PROPANE (C3H8), BUTANE (C4H10), TOLUENE (C6H5CH3)

POSSIBLE SOLUTIONS: SMART 3G D3, C2-LD and MULTISCAN++S1 control panel

WASTER WATER

>>>

In wastewater structures, the most common risks come from sources such as sewers, aeration tanks, sludge digestion tanks and deodorisation plants.

MOST DETECTED GASES:METHANE (CH4), HYDROGEN (H2), CHLORINE (CL2), SULPHUR DIOXIDE (SO2), AMMONIA (NH3), CARBON DIOXIDE (CO2), ETHYLENE OXIDE (ETO), OZONE (O3)

POSSIBLE SOLUTIONS:SMART 3G C2 and PL4+ control panels

ENERGY STORAGE

>>>

Within a BESS (Battery Energy Storage System) it is essential to detect the presence of hydrogen, a highly flammable gas that can accumulate in battery charging and storage areas.

MOST DETECTED GAS:HYDROGEN (H2)

POSSIBLE SOLUTIONS:SMART 3G C2 and MULTISCAN++S1 control panels

PAPER INDUSTRY

>>>

In the paper industry, gas detection is crucial during the printing and coating processes and during paper bleaching and ink usage.

MOST DETECTED GASES:METHANE (CH4), HYDROGEN (H2), SULPHUR DIOXIDE (SO2), CHLORINE (CL2), AMMONIA (NH3), SULPHUR DIOXIDE (SO2), ETHYLENE OXIDE (ETO)

POSSIBLE SOLUTION:SMART 3G D2 and MULTISCAN++S2 control panels

SMART 3
SERIES

SMART 3 gas detectors series are designed for use in non-classified areas.

SMART 3

SMART

3 R

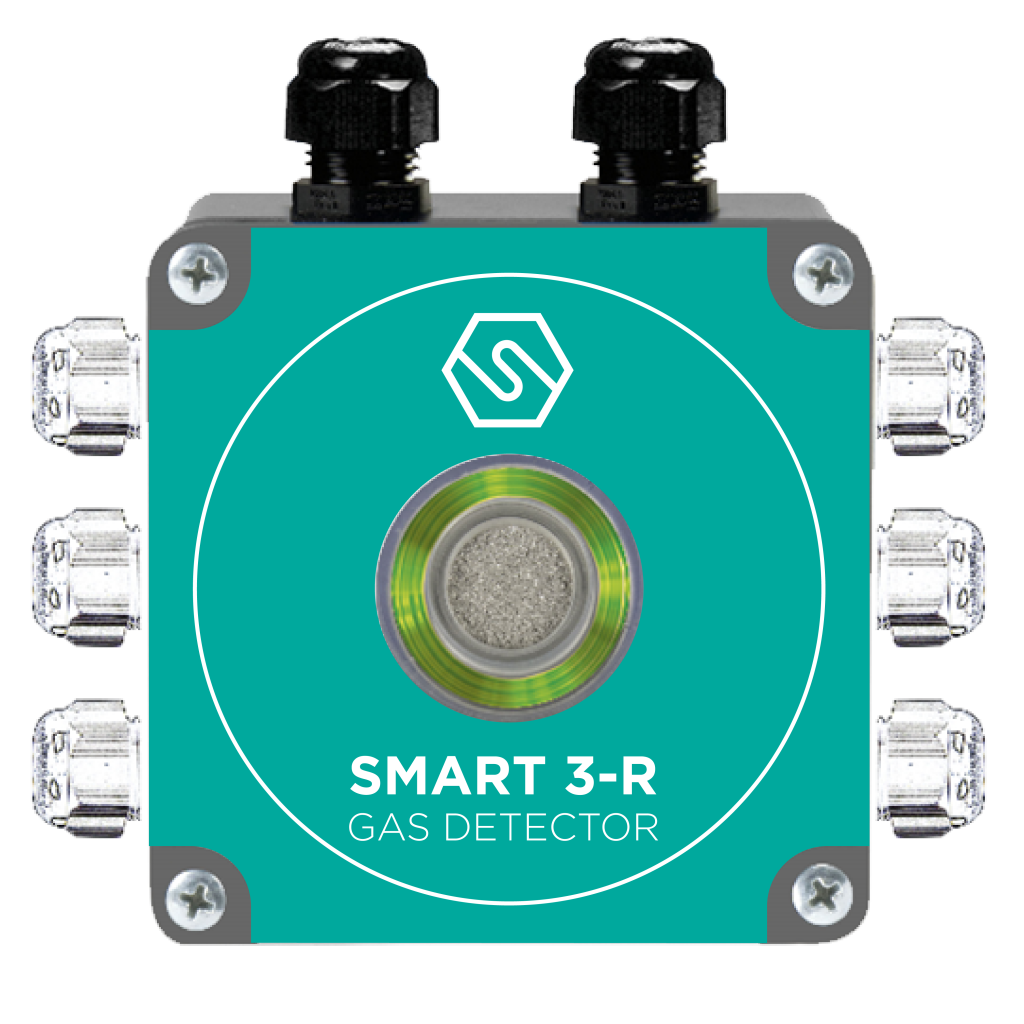

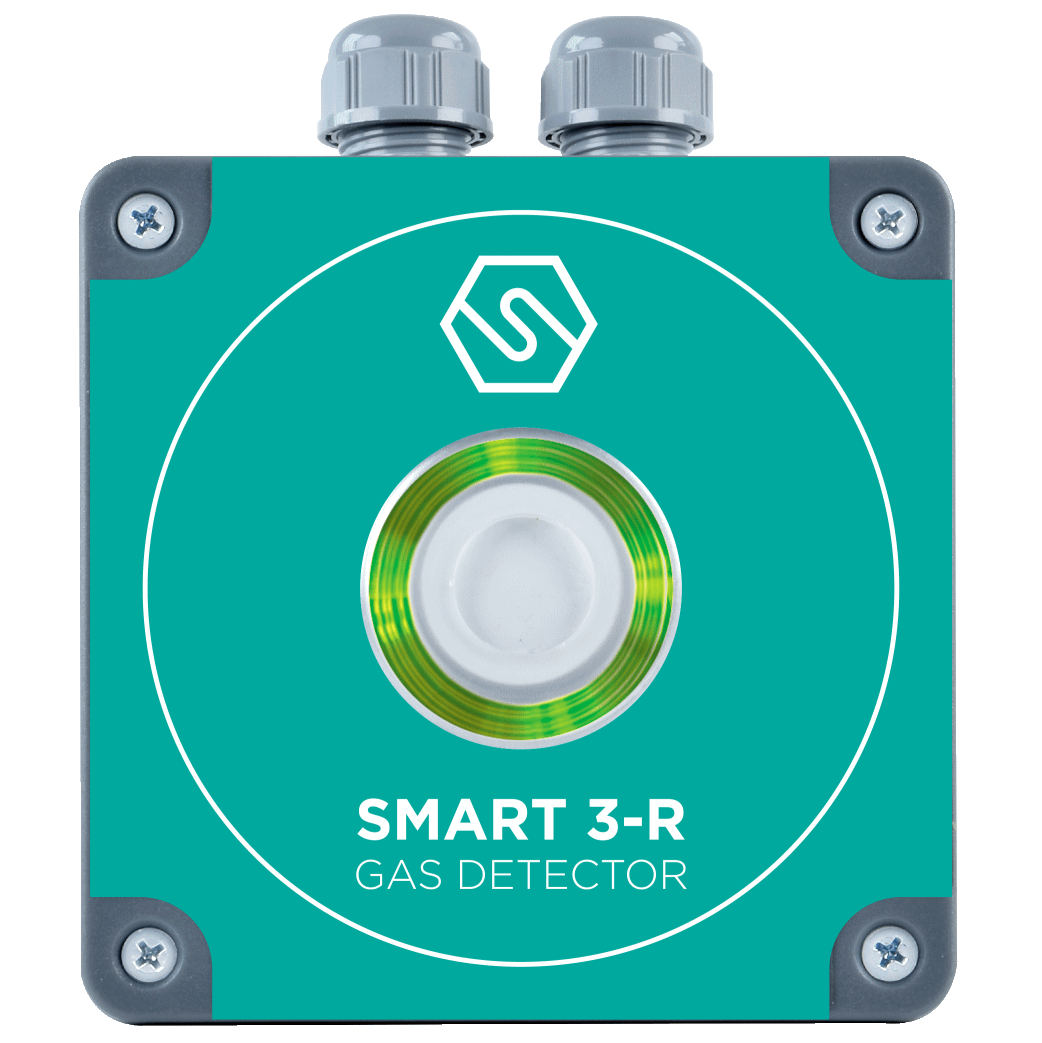

SMART 3 R detectors are made for refrigerant gas detection in non-classified areas, such as machine rooms and laboratories.

SMART 3 R meet the F-Gas regulation requirements.

  • Standard 4-20mA, RS485 and 3 relay output
  • Internal buzzer and LED corona
  • Version with optional remote head
  • Data logger exportable with STS/CKD-OLED or STS/CSW+
  • Power supply 12-24Vdc. On request 90-240Vac but without 4-20mA output
  • Infrared sensor

In order to access the manuals, you must log in.

SMART

SMART 3 Blizzard: the refrigerant gas detector with infrared sensor and management via the advanced SENSE interface.



  • Non-intrusive field calibration via SENSE interface
  • Infrared sensor
  • 4-20 mA output, 2 relays, and wireless interface
  • Internal buzzer and high-brightness smart LEDs
  • Continuous self-diagnostics
  • Easy sensor replacement
  • 12-24 VDC power supply

In order to access the manuals, you must log in.

SMART

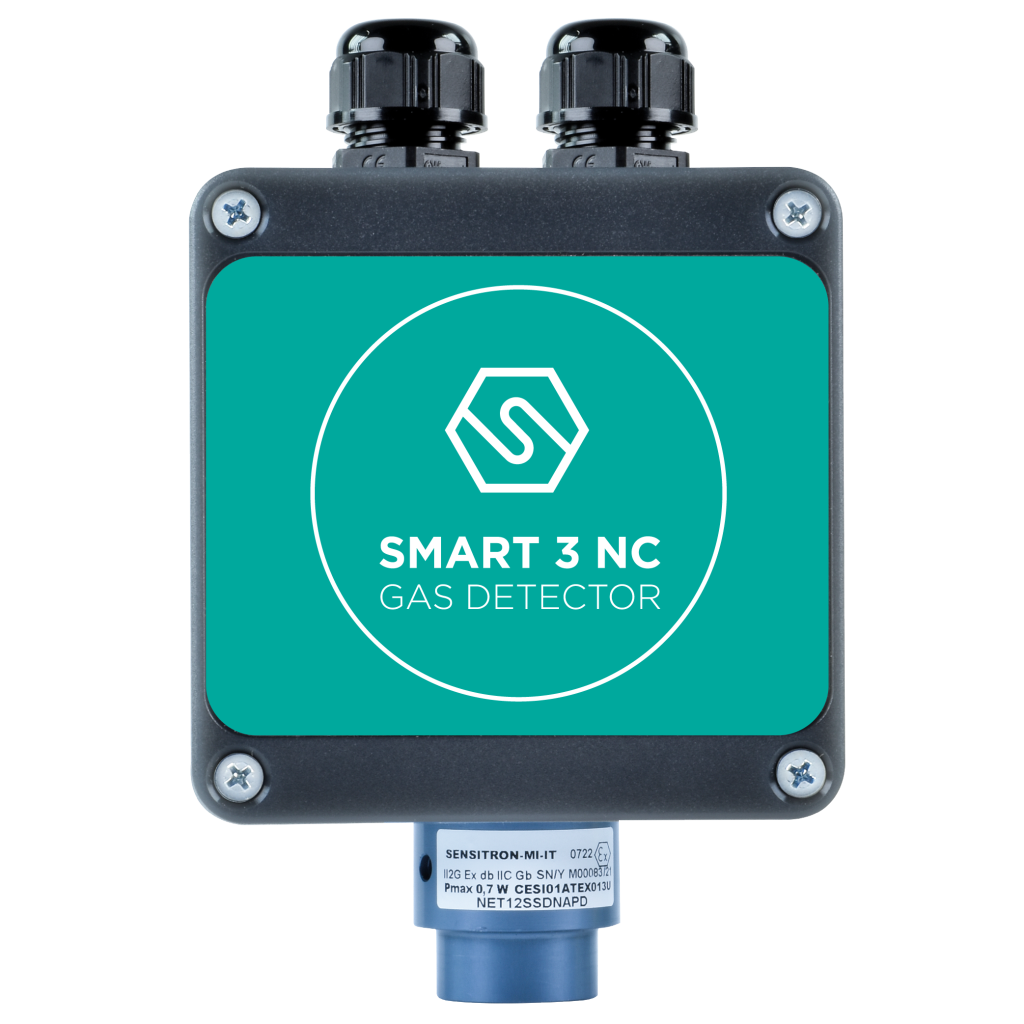

SMART 3 NC detectors are designed to detect flammable, toxic and CO2 gases in unclassified areas.

SMART 3 NC require a control panel.

  • Standard 4-20mA output
  • 1 or 3 optional relay outputs
  • RS485 interface for optional Modbus communication

In order to access the manuals, you must log in.

SMART

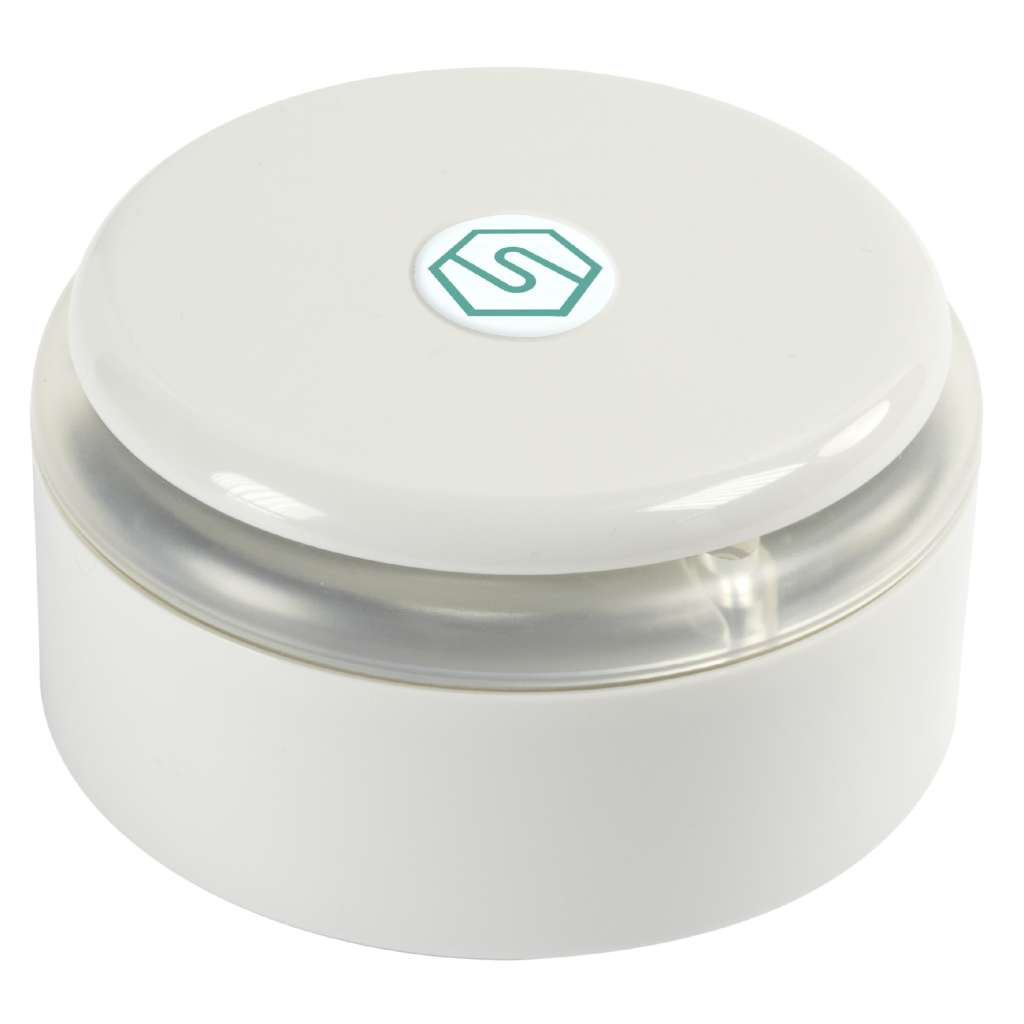

The SMART 3H LITE detector is designed for the detection of A1 and A2L refrigerant gases in environments such as hotels and commercial buildings.

SMART 3H LITE meet F-Gas regulation requirements.

  • 2 programmed relay outputs
  • RS485 communication (0-20%L.F.L. and 0-5000ppm)
  • Internal buzzer and status LED
  • Power supply 12-24Vdc or 90-240Vac)
  • Infrared sensor

In order to access the manuals, you must log in.

SMART

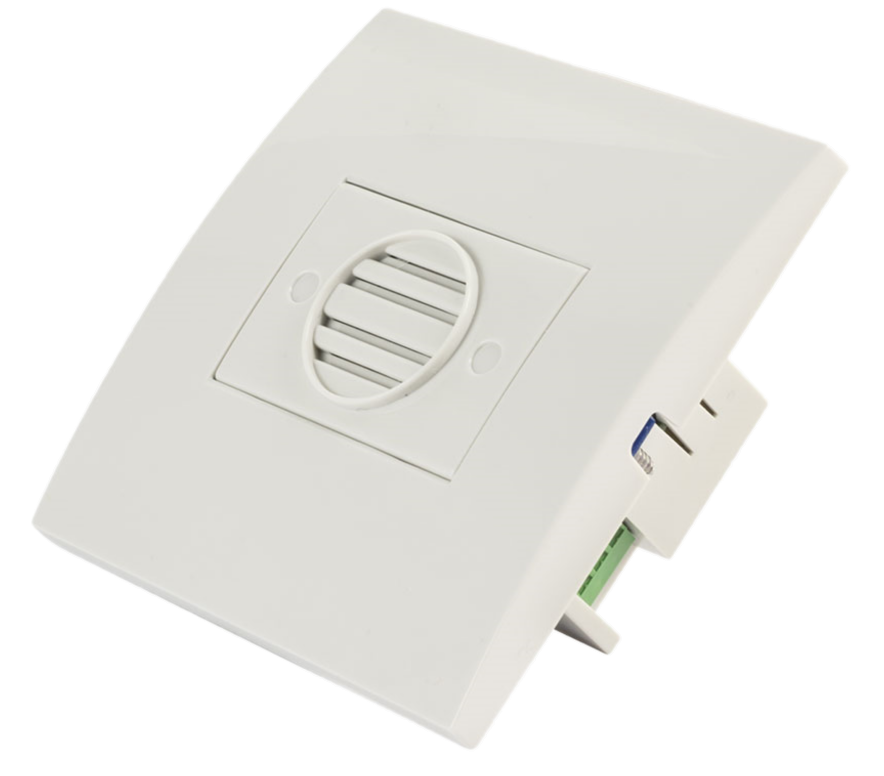

SMART 3H FM-LITE detectors are designed with a flush-mounted design for detecting A1 and A2L refrigerant gases in commercial buildings or hotels.

SMART 3H FM-LITEs meet F-Gas regulation requirements.

  • 2 programmed relay outputs
  • RS485 communication (0-20%L.F.L. and 0-5000ppm)
  • Internal buzzer and status LED
  • Power supply 12-24Vdc or 90-240Vac
  • Infrared sensor

In order to access the manuals, you must log in.
