DESIGNED
FOR ALL APPLICATIONS

SMART
3G

GAS DETECTION SYSTEMS
SMART 3G

SMART 3G.
THE MOST VERSATILE
SERIES

SMART 3G series gas detectors are used to detect, in classified and unclassified areas, the presence of flammable substances, toxic gases, refrigerant gases or for the detection of oxygen deficiency or excess.

SPECIFICATIONS

MAIN

FEATURES

OF THE SERIES











SMART 3G
DESIGNED FOR ALL APPLICATIONS
OUTPUTS
Standard 4-20mA on 3 wires Standard 3 relays
SENSORS
Easy sensor replacement
INTERFACE
RS485 for communication
SAFE
Continuous self-diagnosis of the system
RESISTANT
SIL II/III ATEX II EHSR Certificates
VERSATILE
Can detect more than 50 gases
APPLICATIONS

PHARMACEUTICAL

>>>

Gas detection in the pharmaceutical sector is essential in all processes:
in laboratories, in production in chemical manufacturing processes up to the storage of materials and products.

MOST DETECTED GASES:
OXYGEN (O2), AMMONIA (NH3), LPG/LPG, HYDROGEN (H2), METHANE (CH4), ACETONE (C3H6O), ETHYL ACETATE (C4H8O2), HEXANE (C6H14), STYRENE (C8H8), PENTANE (C5H12), PROPANE (C3H8), BUTANE (C4H10), TOLUENE (C6H5CH3)

POSSIBLE SOLUTIONS: SMART 3G D3, C2-LD and MULTISCAN++S1 control panel

WASTE WATER

>>>

In wastewater structures, the most common risks come from sources such as sewers, aeration tanks, sludge digestion tanks and deodorisation plants.

MOST DETECTED GASES:
METHANE (CH4), HYDROGEN (H2), CHLORINE (CL2), SULPHUR DIOXIDE (SO2), AMMONIA (NH3), CARBON DIOXIDE (CO2), ETHYLENE OXIDE (ETO), OZONE (O3)

POSSIBLE SOLUTIONS:
SMART 3G C2 and PL4+ control panels

ENERGY STORAGE

>>>

Within a BESS (Battery Energy Storage System) it is essential to detect the presence of hydrogen, a highly flammable gas that can accumulate in battery charging and storage areas.

MOST DETECTED GAS:
HYDROGEN (H2)

POSSIBLE SOLUTIONS:
SMART 3G C2 and MULTISCAN++S1 control panels

PAPER INDUSTRY

>>>

In the paper industry, gas detection is crucial during the printing and coating processes and during paper bleaching and ink usage.

MOST DETECTED GASES:
METHANE (CH4), HYDROGEN (H2), SULPHUR DIOXIDE (SO2), CHLORINE (CL2), AMMONIA (NH3), SULPHUR DIOXIDE (SO2), ETHYLENE OXIDE (ETO)

POSSIBLE SOLUTION:
SMART 3G D2 and MULTISCAN++S2 control panels

SMART 3G
SERIES

SMART 3G gas detectors series are designed for all application.

SMART 3G CATALOG

SMART

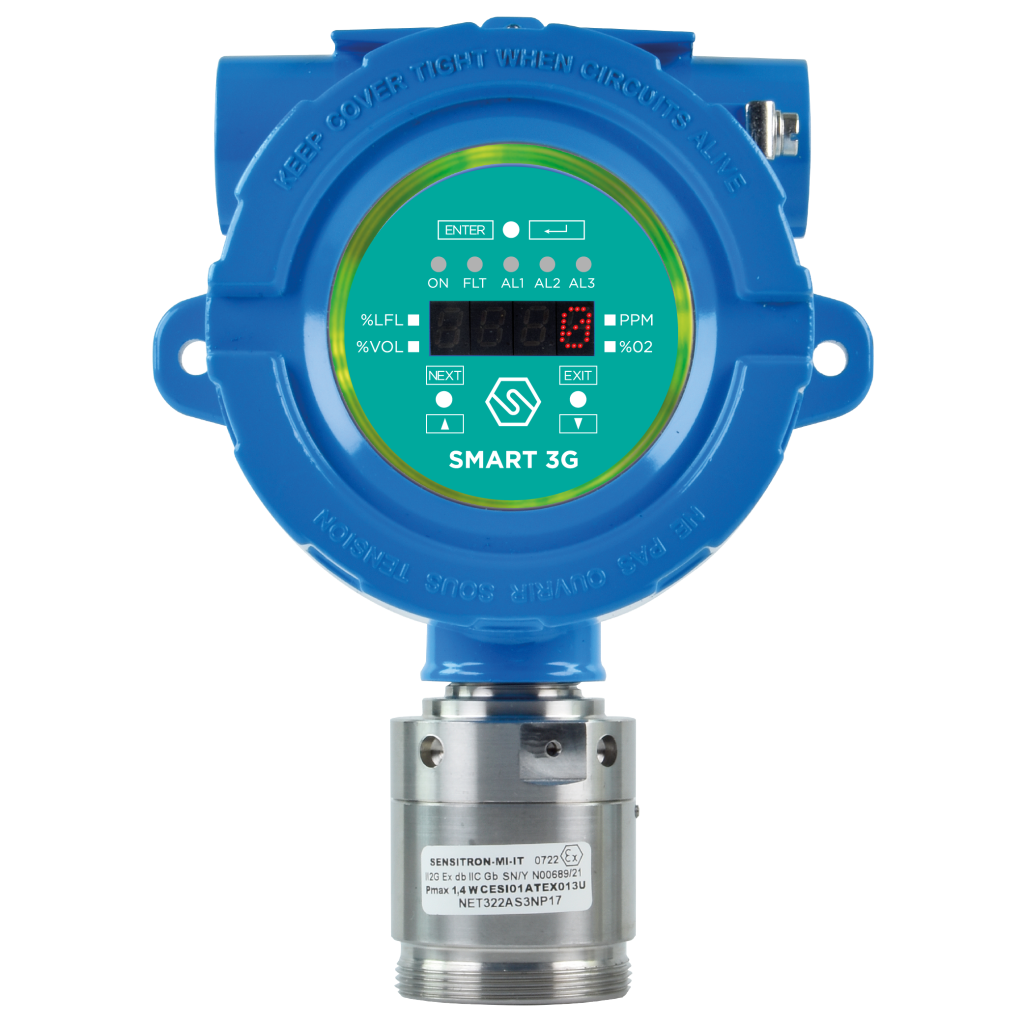

SMART 3G D2 series gas detectors are used to detect, in classified areas, the presence of flammable substances, toxic gases, refrigerant gases or for the detection of oxygen deficiency or excess.

The SMART 3G D2 is designed for use in all industrial environments thanks to its the bright 4-digit display that shows the measured gas concentration in real time and the high-brightness LED corona that can signal the 3 status levels.

SMART3G D2 are ATEX Category 2 certified for Zone 1.

  • Non-intrusive field calibration via magnets
  • 4-digit display and status LED
  • LED crown
  • 4-20mA signal
  • Standard output 3 relays
  • Optional RS485 interface for communication with Modbus protocol
  • ATEX II 2G Ex db IIC T5 Gb (standard) (II2 GD with optional adapter)
  • ATEX II 2G Ex db [ib] IIC T6 Gb for intrinsically safe detectors
  • SIL2 HW and SIL3 SW certified
  • Data logger exportable with STS/CKD-OLED or STS/CSW+
SMART 3G D2

SMART

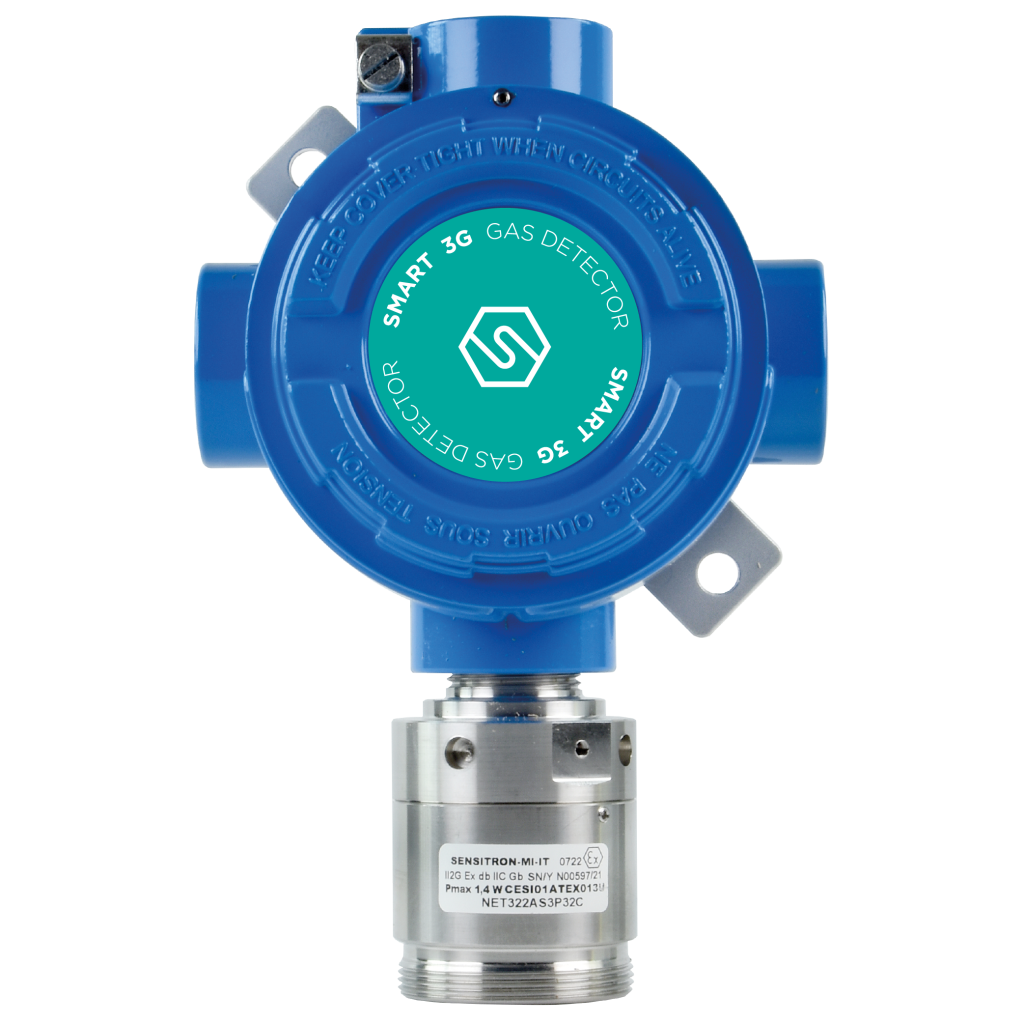

The SMART3G C2 enables in-field calibration using the STS/CKD+ portable calibration keypad.

SMART3G C2 are ATEX Category 2 certified for Zone 1.

  • 4-20mA signal
  • Optional board with 1 or 3 relays
  • Optional RS485 interface for communication with Modbus protocol
  • ATEX II 2G Ex db IIC T5 Gb (standard marking) (II2 GD with optional adapter)
  • ATEX II 2G Ex db [ib] IIC T6 Gb for intrinsically safe detectors
  • SIL3 SW and SIL2 HW Certifications
  • Data logger exportable with STS/CKD-OLED or STS/CSW+
SMART 3G C2

SMART

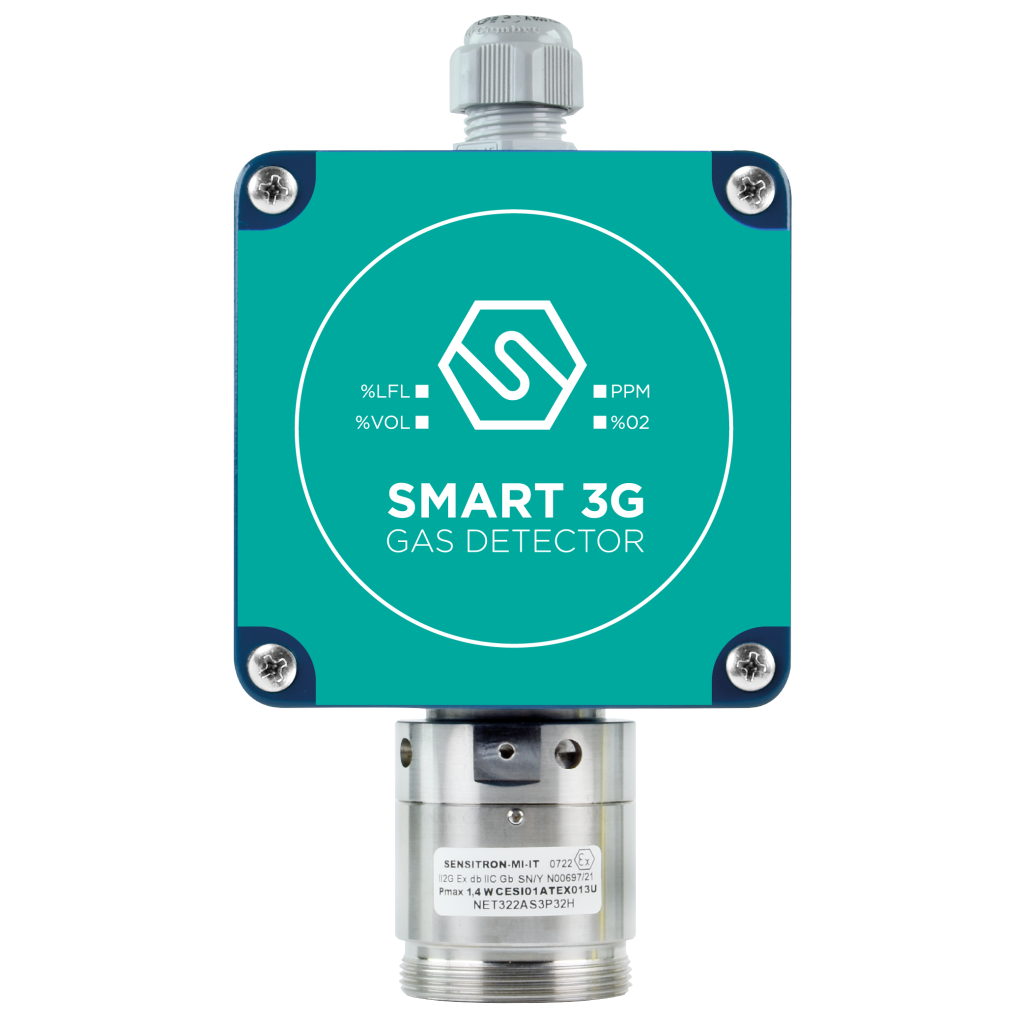

The SMART3G C3 enables on-field calibration using the STS/CKD+ portable calibration keypad.

SMART 3G C3 series gas detectors are used to detect, in areas classified Zone 2, the presence of flammable substances (% LFL), toxic gases in ppm, refrigerant gases, or for the detection of oxygen deficiency or excess.

SMART3G C3 are ATEX Category 2 certified for Zone 1.

  • 4-20mA signal
  • Optional board with 1 or 3 relays
  • Optional RS485 interface for communication with Modbus protocol
  • ATEX II 2G Ex db IIC T5 Gb (standard marking) (II2 GD with optional adapter)
  • ATEX II 2G Ex db [ib] IIC T6 Gb for intrinsically safe detectors
  • SIL3 SW and SIL2 HW Certifications
  • Data logger exportable with STS/CKD-OLED or STS/CSW+

SMART

The SMART3G C2-LD detector is equipped with a high-brightness LED corona through which the alarm status of the detector can be displayed.

SMART3G C2-LD are ATEX Category 2 certified for Zone 1.

  • LED Crown
  • 4-20mA signal
  • Standard output 3 relays
  • Optional RS485 interface for communication with Modbus protocol
  • ATEX II 2G Ex db IIC T5 Gb (standard) (II2 GD with optional adapter)
  • ATEX II 2G Ex db [ib] IIC T6 Gb for intrinsically safe detectors
  • SIL2 HW and SIL3 SW certified
  • Data logger exportable with STS/CKD-OLED or STS/CSW+

SMART

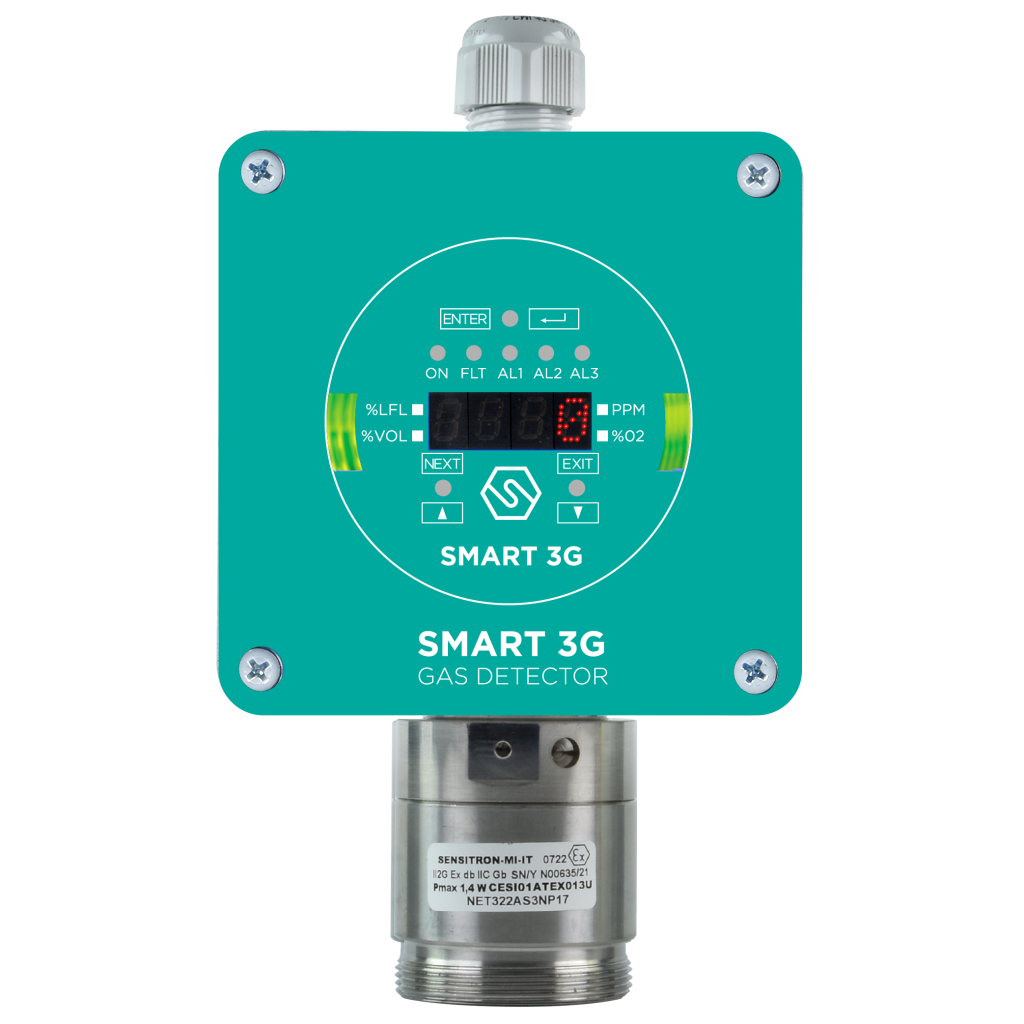

The SMART3G D3 enables non-intrusive field calibration via Hall effect sensors that allow the instrument to be operated via special magnets without having to open or declassify the area.

SMART3G D3 are ATEX Category 2 certified for Zone 1.

  • Non-intrusive field calibration via magnets
  • 4-digit display and status LED
  • LED crown
  • 4-20mA signal
  • Standard output 3 relays
  • Optional RS485 interface for communication with Modbus protocol
  • ATEX: II 3G Ex db ec nC IIC T5 Gc
  • intrinsically safe
  • SIL2 HW and SIL3 SW certified
  • Data logger exportable with STS/CKD-OLED or STS/CSW+
SMART 3G D3

SMART

SMART3G Gr1 gas detectors are designed to detect flammable substances and toxic gases in mines, tunnels and areas classified as Group I. This range offers customizable solutions to meet specific needs.

SMART3G Gr1 are ATEX certified for Group 1.

  • Available 4-digit display and status LED
  • Corona LED
  • 4-20mA signal
  • Optional 3 relay output
  • Optional RS485 interface for communication with Modbus protocol
  • ATEX group 1
  • SIL2 HW and SIL3 SW certified
  • Data logger exportable with STS/CKD-OLED or STS/CSW+
