Designed for all applications

SMART
3G C2-LD

GAS DETECTION SYSTEMS

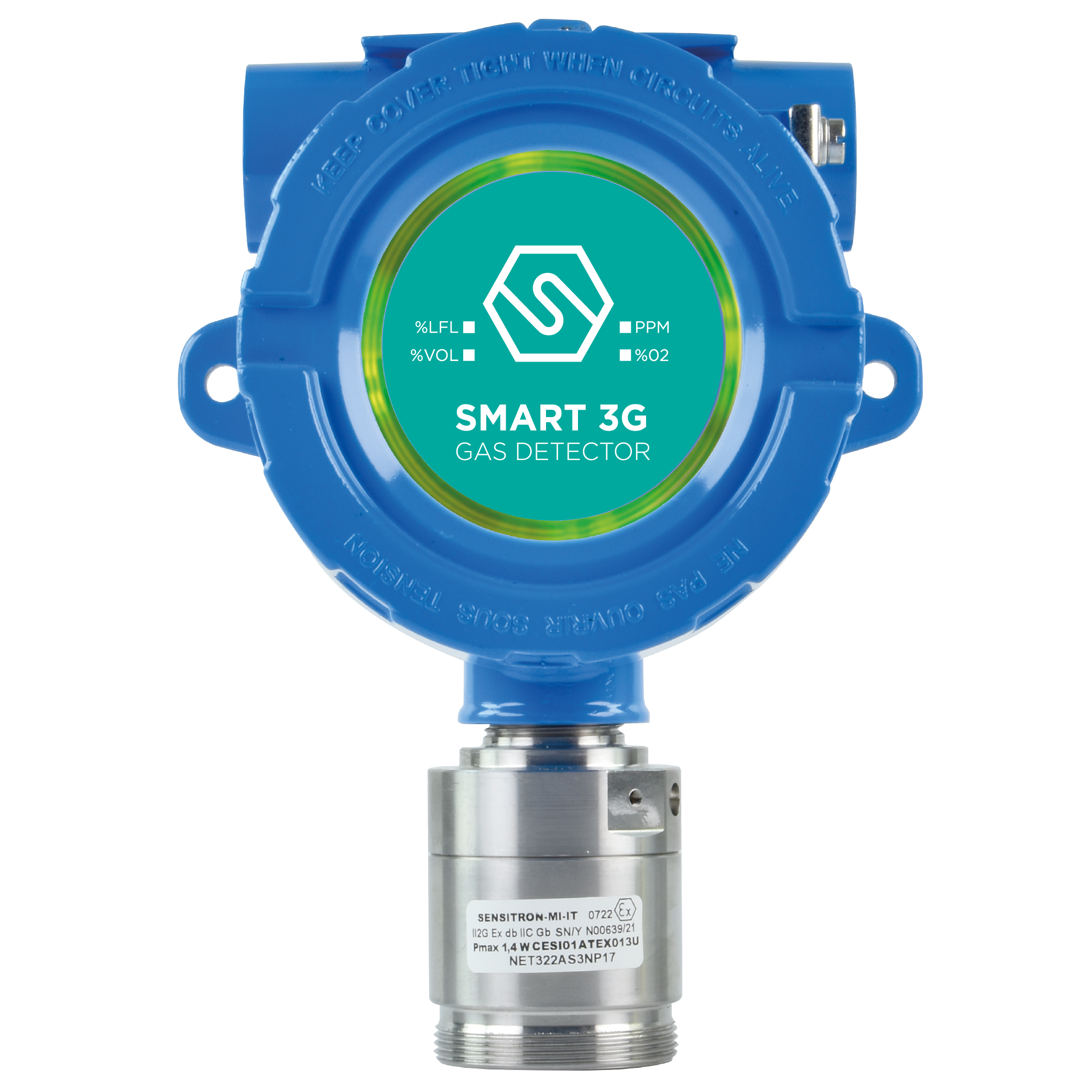

SMART 3G C2-LD

SMART 3G C2 LD

GAS DETECTOR
FOR ZONE 1
CATEGORY 2

Gases detected: flammable, toxic, VOC, refrigerants

Sensors: catalytic, infrared, electrochemical cell, PID

Outputs: analog 4-20mA, RS485, relays

SMART3G C2 LD
ARE ATEX CERTIFIED

CATEGORY 2
ZONE 1

TECHNICAL FEATURES
  • Multi-color LED crown with high brightness
  • Standard 4-20 mA signal on 3 wires
  • Standard 3 relay output
  • Optional RS485 interface for communication with Modbus protocol
  • Zero follower to counteract possible drifts
  • Continuous self-diagnosis of the system
  • ATEX II 2G Ex db IIC T5 Gb (standard) (II2 GD with optional adapter)
  • ATEX II 2G Ex db [ib] IIC T6 Gb for intrinsically safe detectors
  • SIL2 HW and SIL3 SW certified
  • Wide range of usable sensors and detectable gases
  • Wide choice of accessories for installation and maintenance
  • Easy replacement of sensors
  • Data logger exportable with STS/CKD-OLED or STS/CSW+
3D VIEWER

Left-click and drag to rotate the detector.

Right-click to move it and position it in the area.

From desktop, click the Explode button to open it.

From mobile, click on view in your space to activate augmented reality.



Hand gesture to interact with AR










SMART 3G
SERIES

SMART 3G gas detectors series are designed for all applications
