Buildings, hotels, heating plants and private homes require products that provide affordable solutions and deliver safety performance compliant with industry standards. Sensitron has developed this line of products for non-classified areas using the safety concept adopted by its industrial systems for hazardous areas.

Linea Building
Sensitron Srl

Refrigeration
Line

In consideration of the F-Gas directive and with the aim of a professional detection of gases with high GWP, especially SF6, Sensitron has developed an innovative range of products for the detection of Flammable gases, Ammonia, Carbon Dioxide (CO2) and in general all the Halogenates gases, in compliance with the EN 378-3 and ISO 5149-3, EN50676 EN 14624 e IEC 60335-2-40 Annex.
Depending on the ESR (electrical Safety Requirements, that means IP and zone classification) this range is the best available for Hotel rooms (CO2 or R-gases) Machinery rooms (Ammonia in LFL or ppm, Propane, CO2, etc.) as well as for installations in Hazardous areas.There are 3 main applications for refrigerant gas detection:

  • Detection on machinery and in machinery rooms: detector systems are generally required to check for refrigerant leaks in rooms housing central refrigeration units, freezers, cold stores, etc.
  • Detection in large industrial environments: conditioning and refrigeration plant production and test floors, gas storage depots, refrigeration plants, gas distribution lines, refrigerant circuit loading areas, test areas/rooms, etc.
  • Detection and protection in residential environments: hotels, offices, schools, hospitals, etc.

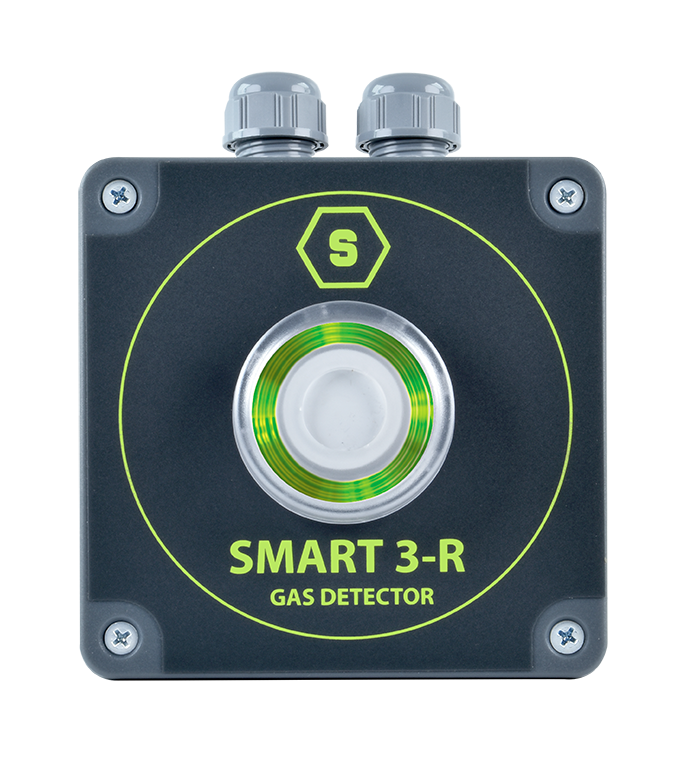

SMART3-R
Designed for machinery rooms, laboratories and non-classified areas

The SMART3-R have been designed for non classified areas and are ideal for the detection of flammable, toxic and refrigerant gasses in non hazardous environments.

The detectors provide analog 4-20 mA, digital RS485 transmissions and 3-relay outputs.

A multi-colour LED light ring offers a visual indication of the detector' status while an internal buzzer activates to warn of any fault or alarm condition.

SMART3-R are rated to IP54 and feature one-man calibration via the STS/CKD series calibration keypad.

On request, SMART3-R can be supplied with remote sensor head. The detector will be supplied complete with 5m RJ12 6P6C cable.

SMART3R comply with the following new standards:

  • EN 378-3
  • EN14624
  • EN 50676
  • IEC 60335-2-40 Annex LL
  • ISO 5149-3
  • F-Gas Regulation
  • Standard 4-20 mA, RS485 and 3-relay outputs
  • Multicolour LED ring
  • Internal buzzer for audible warning
  • Ongoing system self-diagnosis
  • Wide range of sensors and detectable gases
  • Optional remote sensor head
  • Easy sensor replacement
  • Standard 12-24 Vdc power supply. On request 90-240 Vac, without 4-20 mA transmission

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

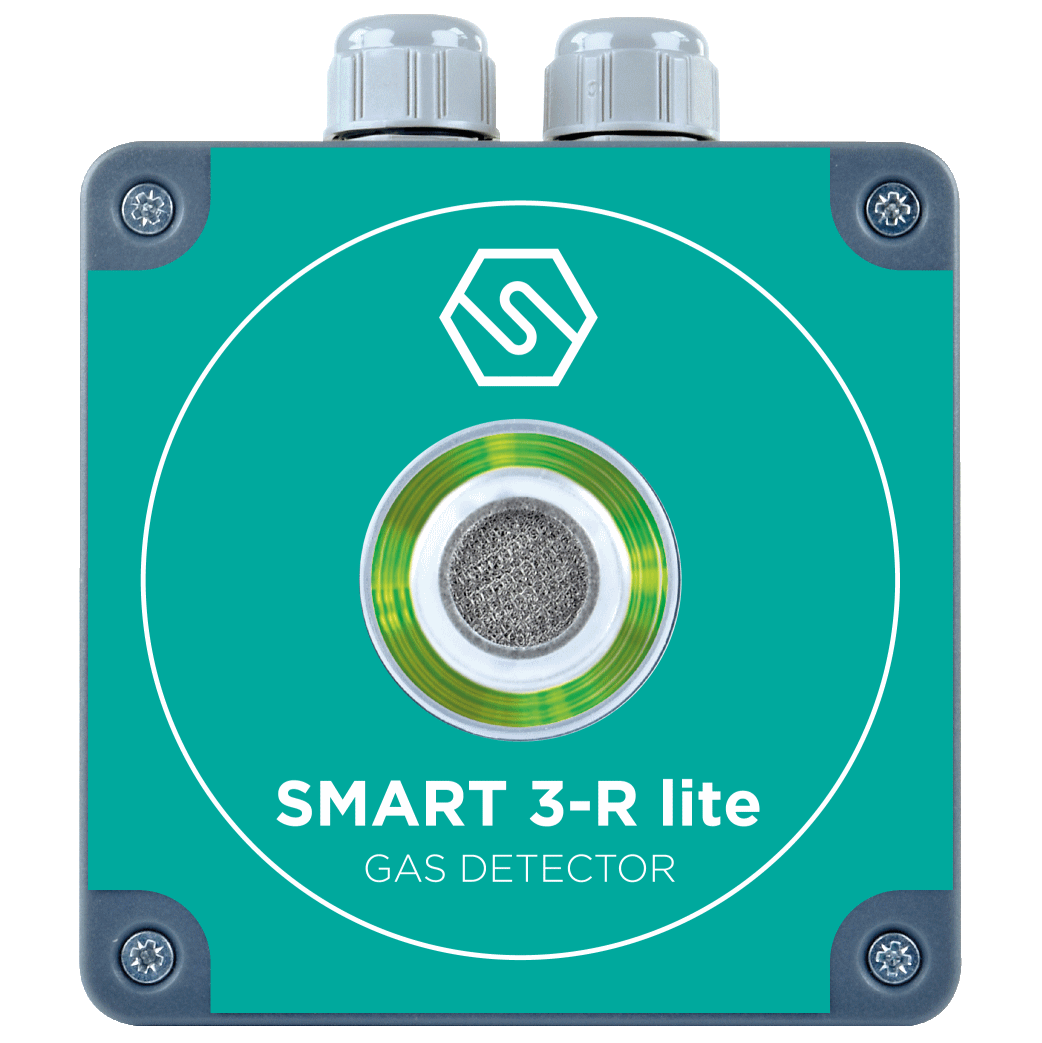

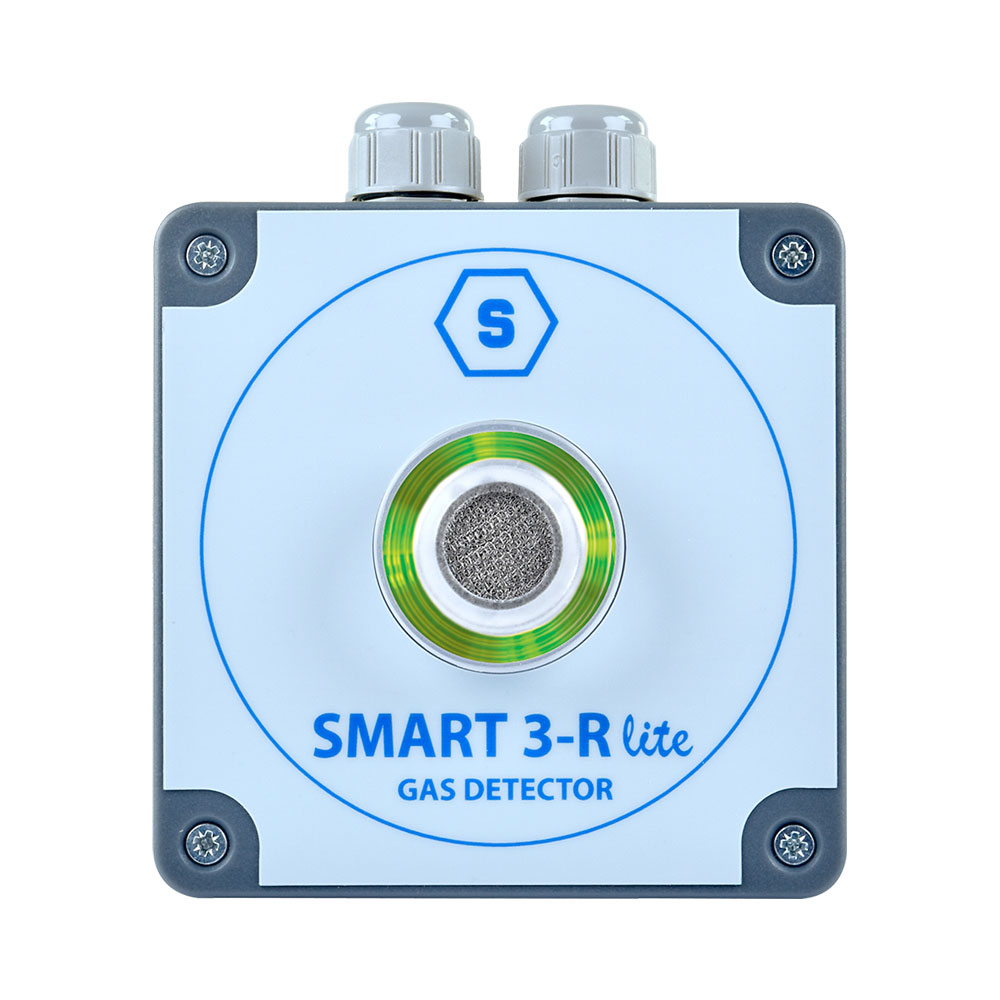

SMART3R – LITE
Gas detectors for A1 and A2L refrigerant gases for non classified areas

The SMART3-R LITE allow to monitor A1 and A2L refrigerant gasses in machinery rooms and refrigeration plants.

The detectors employ a unique cost-effective IR sensor and provide 2-output relays. A front LED ring offers a visual indication of the detector' status while an internal buzzer activates to warn of any fault or alarm condition.

SMART3-R are rated to IP54 and feature one-man calibration via the STS/CKD+ series calibration keypad.

SMART3-R LITE satisfy the following standards:

  • EN 378-3
  • EN 14624
  • EN 50676
  • IEC 60335-2-40 Annex LL
  • ISO 5149-3
  • F-Gas Regulation
  • 2 pre-set output relays
  • Optional RS485 communication with STS/IDI card
  • Multicolour LED ring
  • Standard ranges: 0-20% LFL and 0-5000 ppm
  • Internal buzzer for audible warning
  • Ongoing system self-diagnosis
  • Standard 12-24 Vdc.

The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

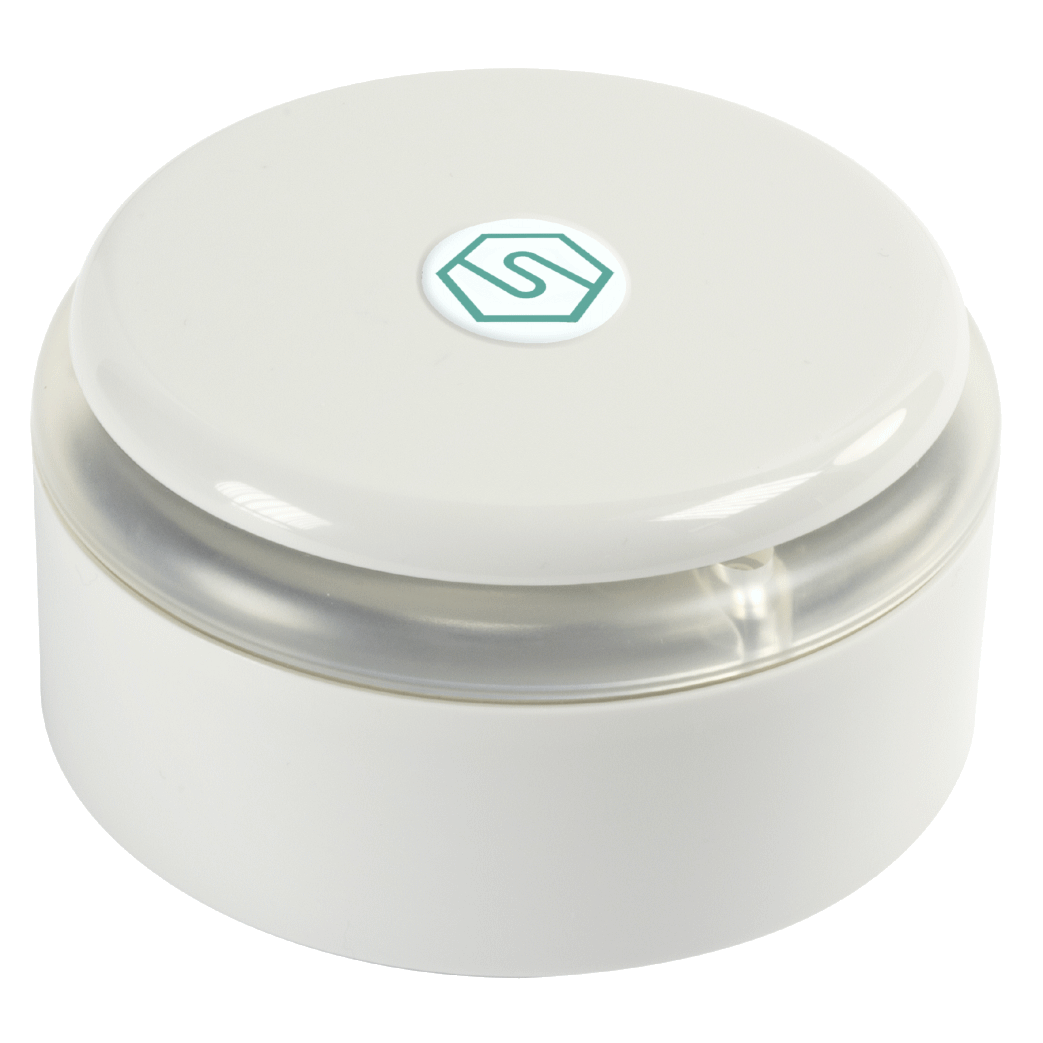

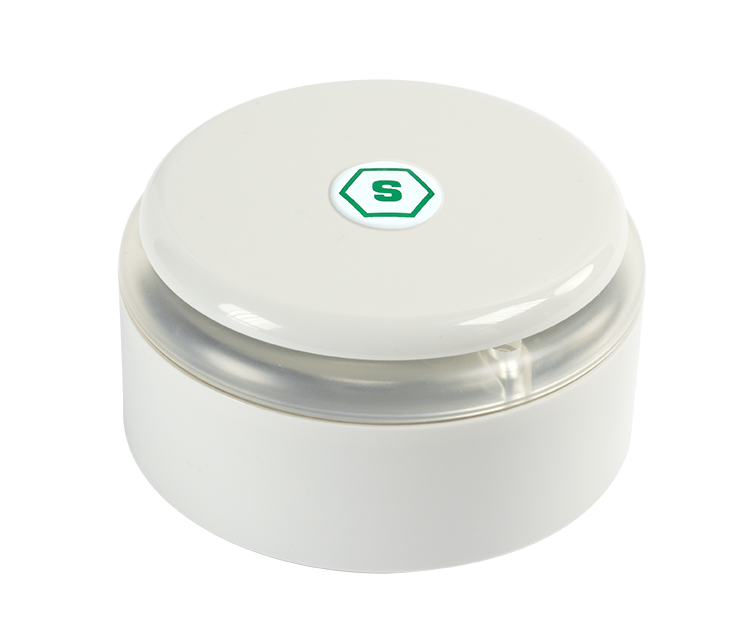

SMART3H – LITE
Gas detectors for A1 and A2L refrigerant gases for buildings & hotel room

Designed to meet with cost effective requirements, SMART3-H-L allow to monitor A1 and A2L refrigerant gasses in hotel and building applications. Three mode status LEDs offer a visual indication of the detector' status while an internal buzzer activates to warn of any fault or alarm condition. SMART3-H-L provides

The detectors employ a unique cost-effective IR sensor and provide RS485 communication and two pre-set relay outputs.

The detectors are rated to IP 42 and are available at 12-24 Vdc or 90-240 Vac.

SMART3H LITE satisfy the following standards:

  • EN 378-3
  • EN14624
  • EN 50676
  • IEC 60335-2-40 Annex LL
  • ISO 5149-3
  • F-Gas Regulation
  • 2 pre-set output relays
  • RS485 communication (0-20%LFL and 0-5000 ppm)
  • Multicolour LED ring
  • Standard ranges: 0-20% LFL and 0-5000 ppm
  • Internal buzzer for audible warning
  • Ongoing system self-diagnosis
  • Standard 12-24 Vdc power supply or 90-240 Vac

The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

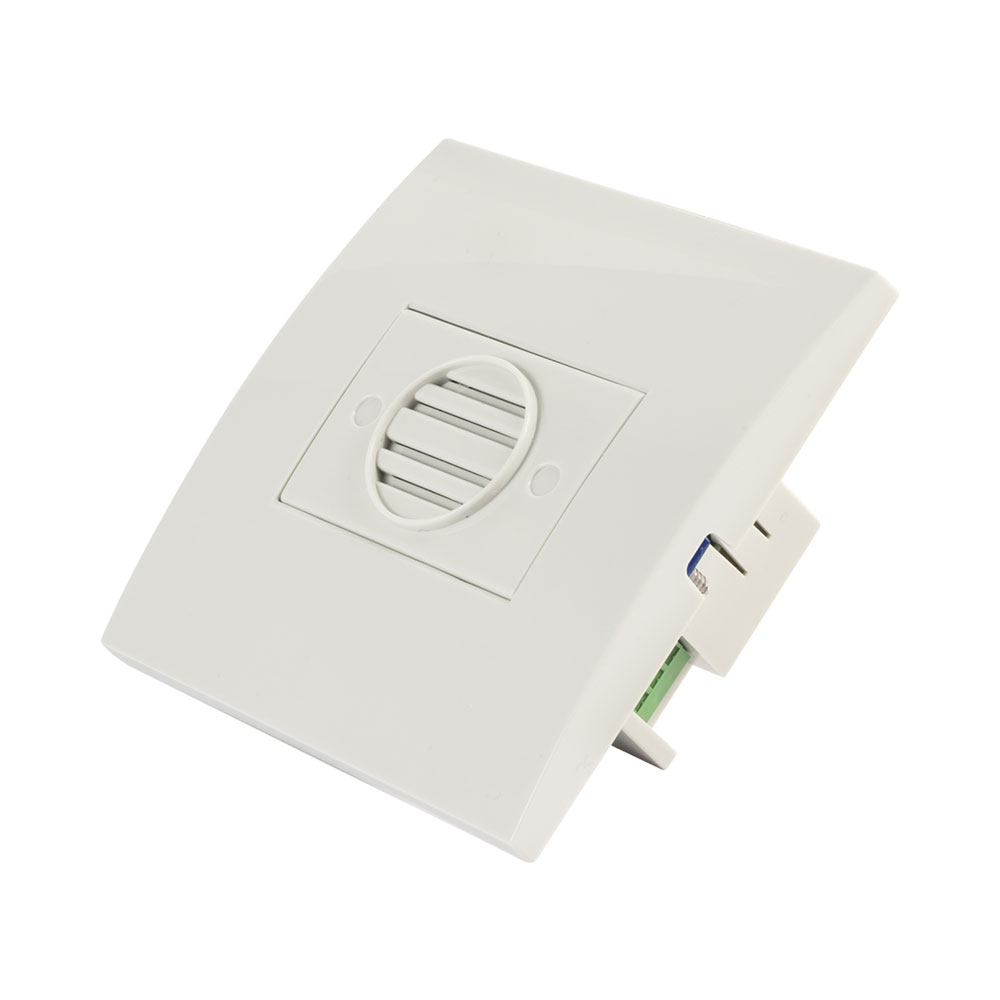

SMART3H FM – LITE
Gas detectors for A1 and A2L refrigerant gases for buildings & hotel room

SMART3-H-FM LITE have been designed to offer a flush mount solution for refrigerant gases to be detected in hotels or residential buildings. The detectors employ a unique cost-effective IR sensor and provide RS485 communication and two pre-set relay outputs.

The detector is rated to IP 42.

SMART3H-FM LITE satisfy the following standards:

  • EN 378-3
  • EN14624
  • EN 50676
  • IEC 60335-2-40 Annex LL
  • ISO 5149-3
  • F-Gas Regulation
  • Standard flush-mounting box 3 modules
  • 2 output relays
  • RS485 communication (0-20%LFL and 0-5000 ppm)
  • Standard ranges: 0-20% LFL and 0-5000 ppm
  • LED indication & internal buzzer for audible warning
  • Ongoing system self-diagnosis
  • Standard 90-240 Vac or 12-24 Vdc

The datasheets provide complete general information about Sensitron systems.

Click here for full information about cabling, installation, maintenance and programming of the Sensitron detector or control panel.

Private Area

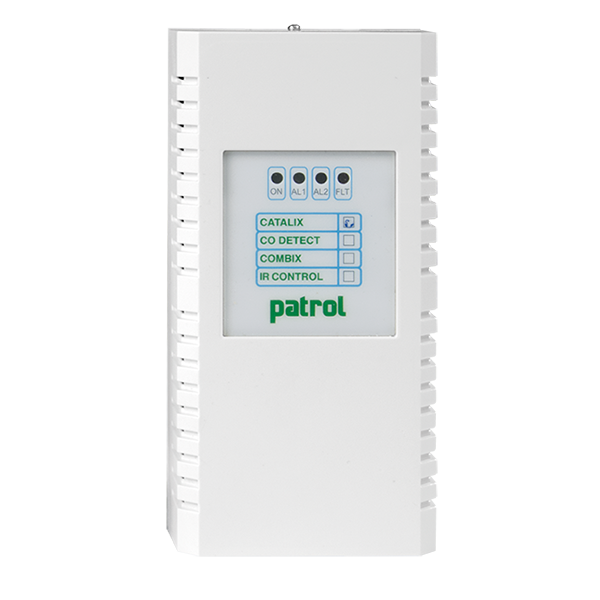

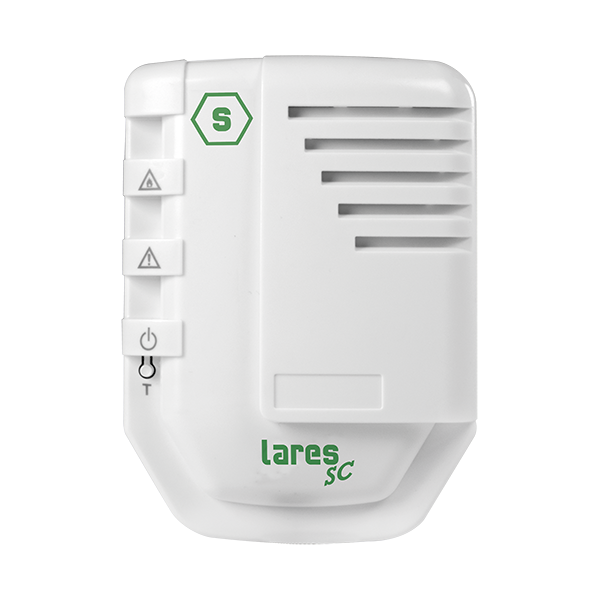

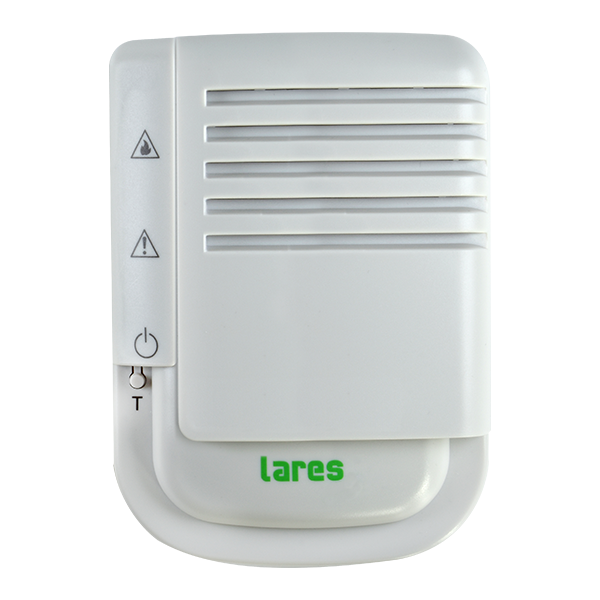

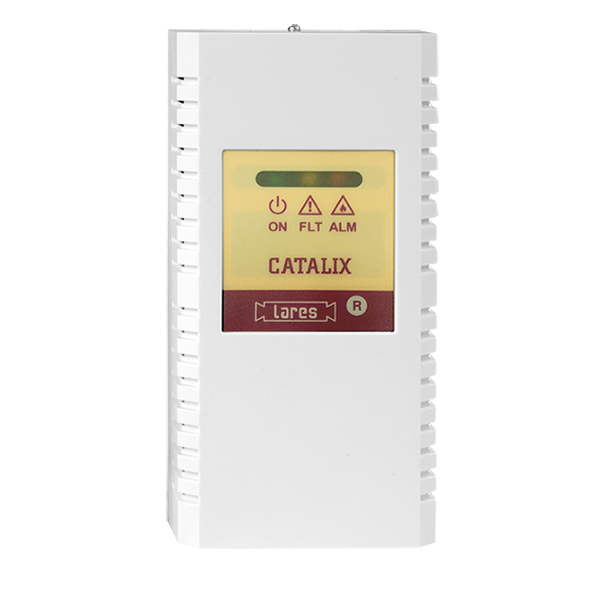

PATROL & LARES

  • Output relay
  • Audible alarm
  • Internal buzzer and status LED
  • Power supply: 12-24 Vcc or 220 Vca
